This is a 2-layer PCB designed as a complementary device for our team in order to get information more easily about the status of the vehicle, such as sensors or battery power percentage.
Components Used
- STM32G431KBT6
- Adafruit 2.8” and 3.2” Color TFT Touchscreen
- ECS-160-12-33-AGN-TR - > 16 MHz Crystal
- R-78E3.3-1.0 -> Regulator
- TCAN330G -> 3.3V CAN Transceiver
Notes
The display can be connected using either I2C or SPI communication protocol. The microcontroller uses the CAN protocol to receive info and data from another device.

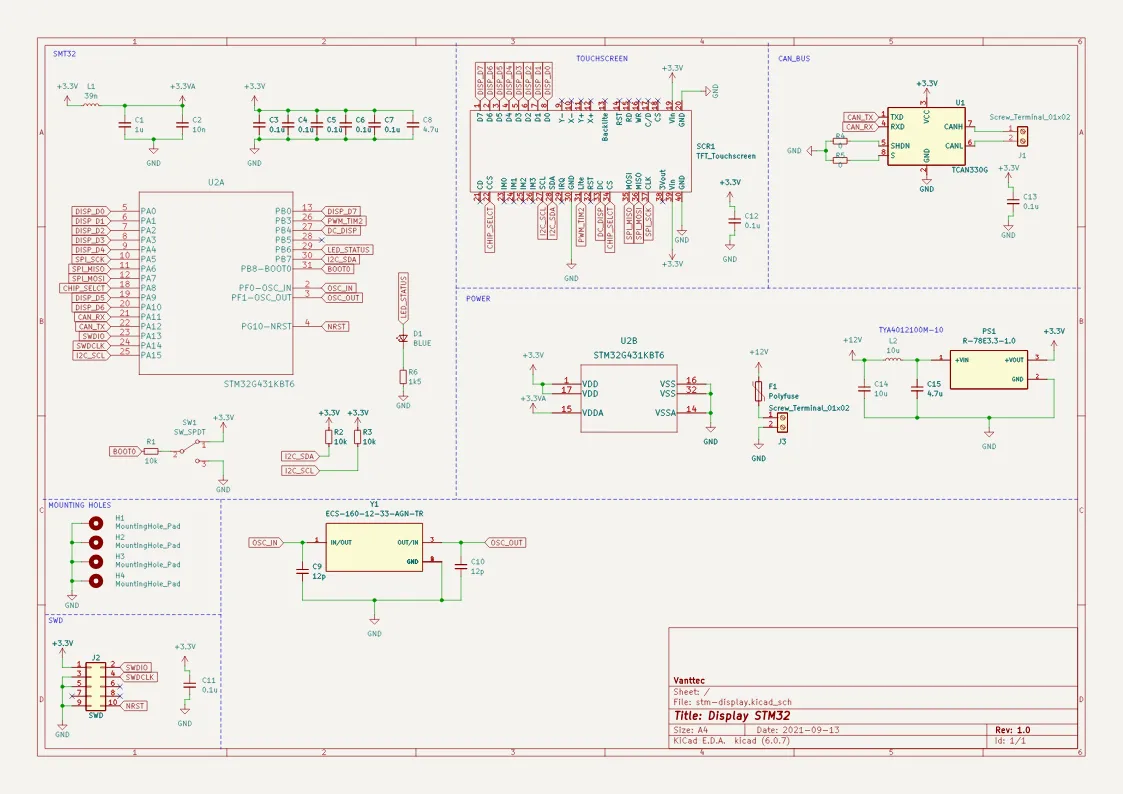

Schematic

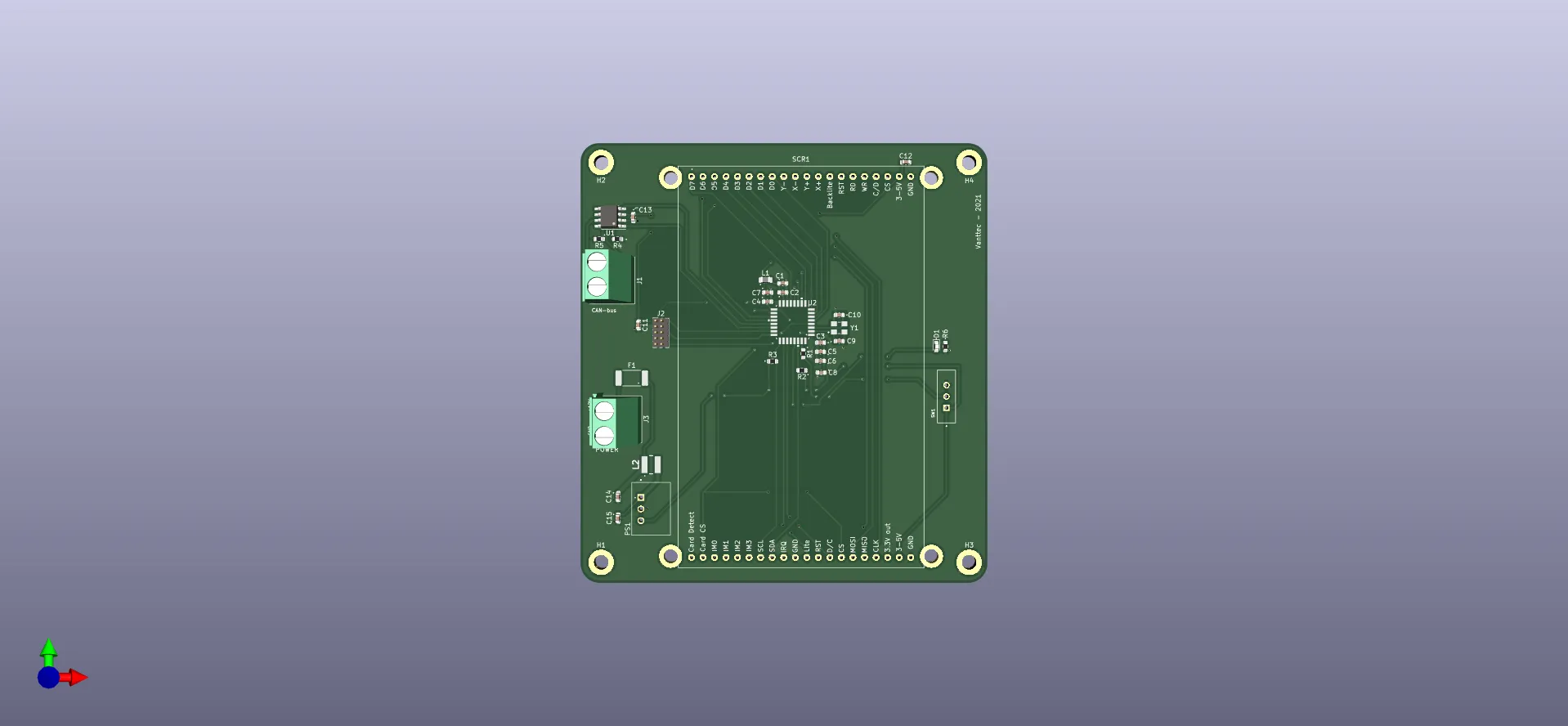

Front View
